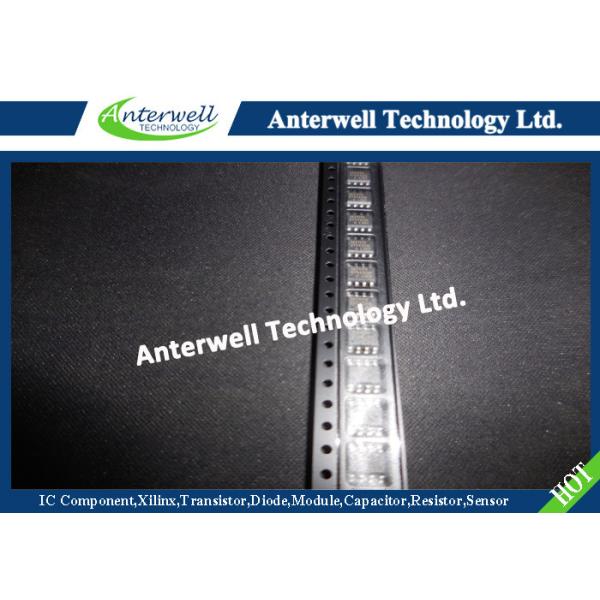

IR2117S SINGLE CHANNEL DRIVER common integrated circuits

Brand Name : IRF

Model Number : IR2117S

Certification : Original Factory Pack

Place of Origin : Philippines

MOQ : 5pcs

Price : Negotiation

Payment Terms : T/T, Western Union,PayPal

Supply Ability : 600PCS

Delivery Time : 1 Day

Packaging Details : please contact me for details

VOFFSET : 600V max

IO+/- : 200 mA / 420 mA

VOUT : 10 - 20V

ton/off (typ.) : 125 & 105 ns

Contact Now

STOCK LIST

SN7417N	3755	TI	16+	DIP
VN920SP	3756	ST	15+	SOP10
CNY75B	3772	VISHAY	16+	DIP-6
DS1803	3777	DALLAS	15+	SOP16
MC33171	3778	ON	12+	SOP8
74LVC1G125DCKR	3800	TI	16+	SOT23
AD8009ARZ	3800	AD	12+	SOP8
BA4560	3800	ROHM	16+	SOP8
BD680	3800	ST	16+	TO-126
CDRH6D28-101NC	3800	SUMIDA	16+	SMD
EL7202CS	3800	ELANTEC	16+	SOP-8
IRF1010NPBF	3800	IR	16+	TO-220
TDA2030A	3800	ST	14+	TO-220
UC3854N	3800	TI	16+	DIP16
GS3137-08-TAZ	3801	CONEXANT	16+	TSSOP
TNY267PN	3822	POWER	15+	DIP-7
TOP245PN	3822	POWER	16+	DIP-7
AD8051AR	3852	AD	15+	SOP8
TS5A3153DCUR	3870	TI	12+	VSSOP-8
E6N02	3874	ON	16+	SOP8
FMMTA14	3888	ZETEX	12+	SOT23
TLC072CDGNR	3888	TI	16+	MSOP8
BTS442E2	3900		16+	SOT-263
FDD6670AL	3900	FAIRCHILD	16+	TO252
NC7SZ00M5X	3900	FAIRCHILD	16+	SOT-153

IR2117S SINGLE CHANNEL DRIVER common integrated circuits

IR2117S SINGLE CHANNEL DRIVER common integrated circuits Features

• Floating channel designed for bootstrap operation Fully operational to +600V Tolerant to negative transient voltage dV/dt immune

• Gate drive supply range from 10 to 20V

• Undervoltage lockout

• CMOS Schmitt-triggered inputs with pull-down

• Output in phase with input (IR2117) or out of phase with input (IR2118)

• Also available LEAD-FREE

Description

The IR2117/IR2118(S) is a high voltage, high speed power MOSFET and IGBT driver. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS outputs. The output driver features a high pulse current buffer stage designed for minimum cross-conduction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high or low side configuration which operates up to 600 volts.

IR2117S SINGLE CHANNEL DRIVER common integrated circuits
